Overview

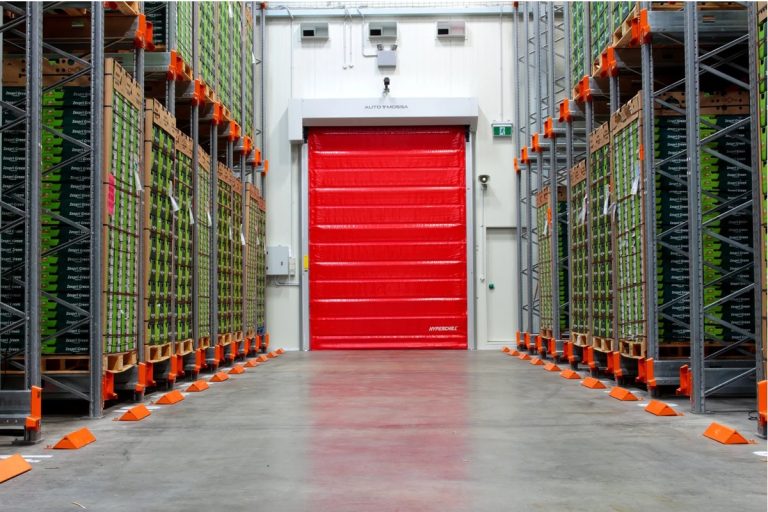

The HYPERFREEZE insulated high speed door is designed for cold storage applications, offering advanced thermal performance with U‑values ranging from 0.9 W/m²C to 0.75 W/m²C. It is suitable for operating environments with temperatures as low as ‑30 °C.
Built for durability, the HYPERFREEZE features a robust door blade that resists impacts from fork‑hoists. The door incorporates a crash‑out system with automatic re‑location, all contained within a self‑supporting door frame.
A soft bottom edge enhances personnel safety while providing the flexibility required for effective operation of the curtain crash‑out re‑location system.
AUTO MOSSA doors are manufactured in New Zealand.

ARA Manufacture is the exclusive manufacturer of AUTO MOSSA doors in New Zealand, Australia, and Lower South East Asia.
Applications
This insulated high speed door is ideal for:
- Cold storage warehouses
- Freezer rooms
- Food processing facilities
- Pharmaceutical storage
- Distribution centres
Servicing & Maintenance
To maximise performance and lifespan, we provide tailored servicing and maintenance programmes for all insulated high speed doors. From preventative maintenance and compliance checks to fast on-site repairs, our team ensures your door operates efficiently, safely, and reliably in cold storage environments where downtime is not an option.

| HYPERFREEZE Specifications |
Door Blade Insulation
The insulated door blade achieves an overall U‑value of 1.7 W/m²C, making it one of the highest‑performing high‑speed chiller doors available.
Patented AIRSTRIP System
Designed to extend the operational life of the door, the patented AIRSTRIP is constructed from extruded rubber with reinforced webbing. It maintains separation between the door blade layers as the door rolls up, preventing compression of the materials. The AIRSTRIP also enables smooth door operation at speeds of up to 2.5 m/sec.
Knock‑Out Function
The HyperFreeze features an integrated crash‑out function that allows the door blade to disengage on impact and automatically re‑align during the next downward cycle.
Standard Size up to (W x H): 4000 x 6000 mm
Opening/Closing Speed up to Max: 2.5 / 0.6 m/s
Wind resistance: Class 1 – 3 EN 12424
Insulated Door Blade (U value 0.9W/m2C): Standard 30mm
AirStrip: Standard
Variable Speed Drive: Standard
Control Voltage: 24 V DC
Mains Connection: 3PH + N + E / 400V 50/60Hz
2 x Sets of Inline Photocells: Standard
Flexible Soft Bottom Edge: Standard
Door Blade Knock-Out Capability: Standard
Top Roll Cover: Standard
Motor Cover: Standard
Curtain Colour Options: Six Standard Colours Available
|
