Overview

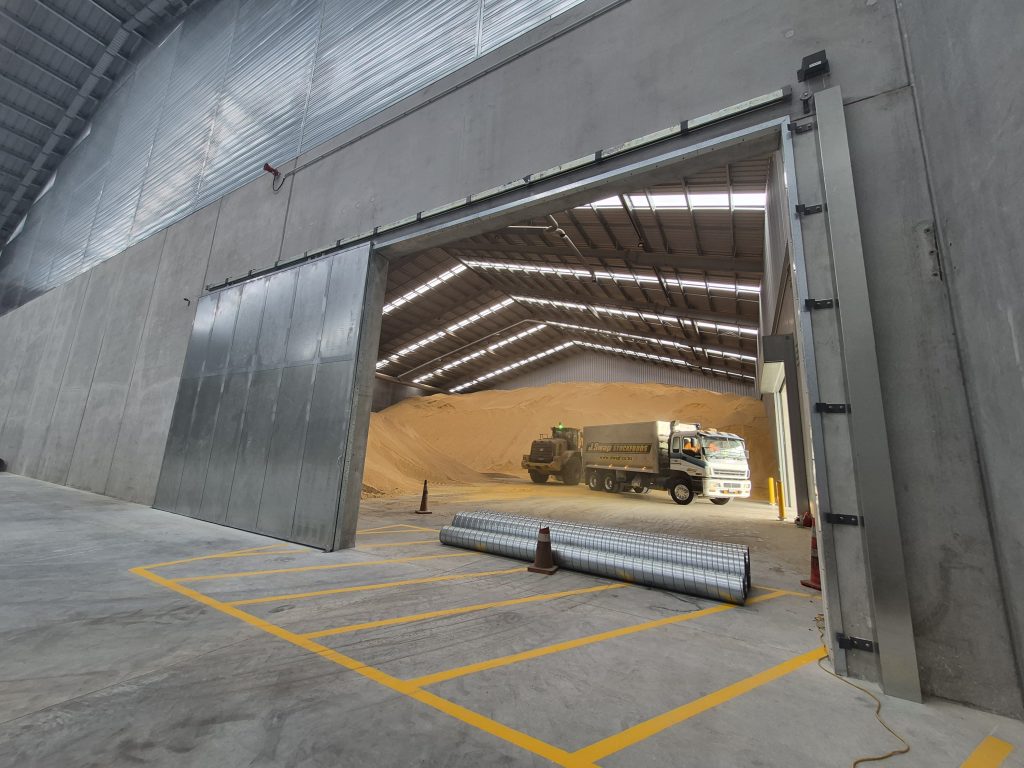

Tailored and manufactured to suit the size of the opening, each door is fire rated for masonry walls to provide up to -/240/30 FRR or up to -/60/30 in a specially modified timber stud wall. Best suited for openings where hinged doors are impractical, Fyresafe™️ Sliding Fire Doors will protect from fires for up to four hours and provides half an hour insulation.
Applications
These fire safe doors are designed to suit many projects including:
- Factories and warehouses
- Record and document stores
- Dangerous goods stores
- Switch rooms
- Hospitals, schools, hotels, shopping centres
- Carparks
| STANDARD SPECIFICATIONS |
Lightweight refracting core.
Clad in galvanised steel sheeting.
Capped with steel channels.
Doors can be single leaf or bi-parting (reducing sidestacking sideroom).
May be activated by fusible link or by alarm signal.
Doors can be free to manually slide open and closed or set to ‘always open’ or ‘self-closing’ modes (for smaller doors).
Fire rated for masonry walls to provide up to -/240/30 FRR or up to -/60/30 in a specially modified timber stud wall.
To achieve fire ratings, walls and floors must be flat and true.
|
| Size |
Maximum width - 6 metres
Maximum height - 5 metres |
| Finish |
Galvanised Steel |
