Overview:

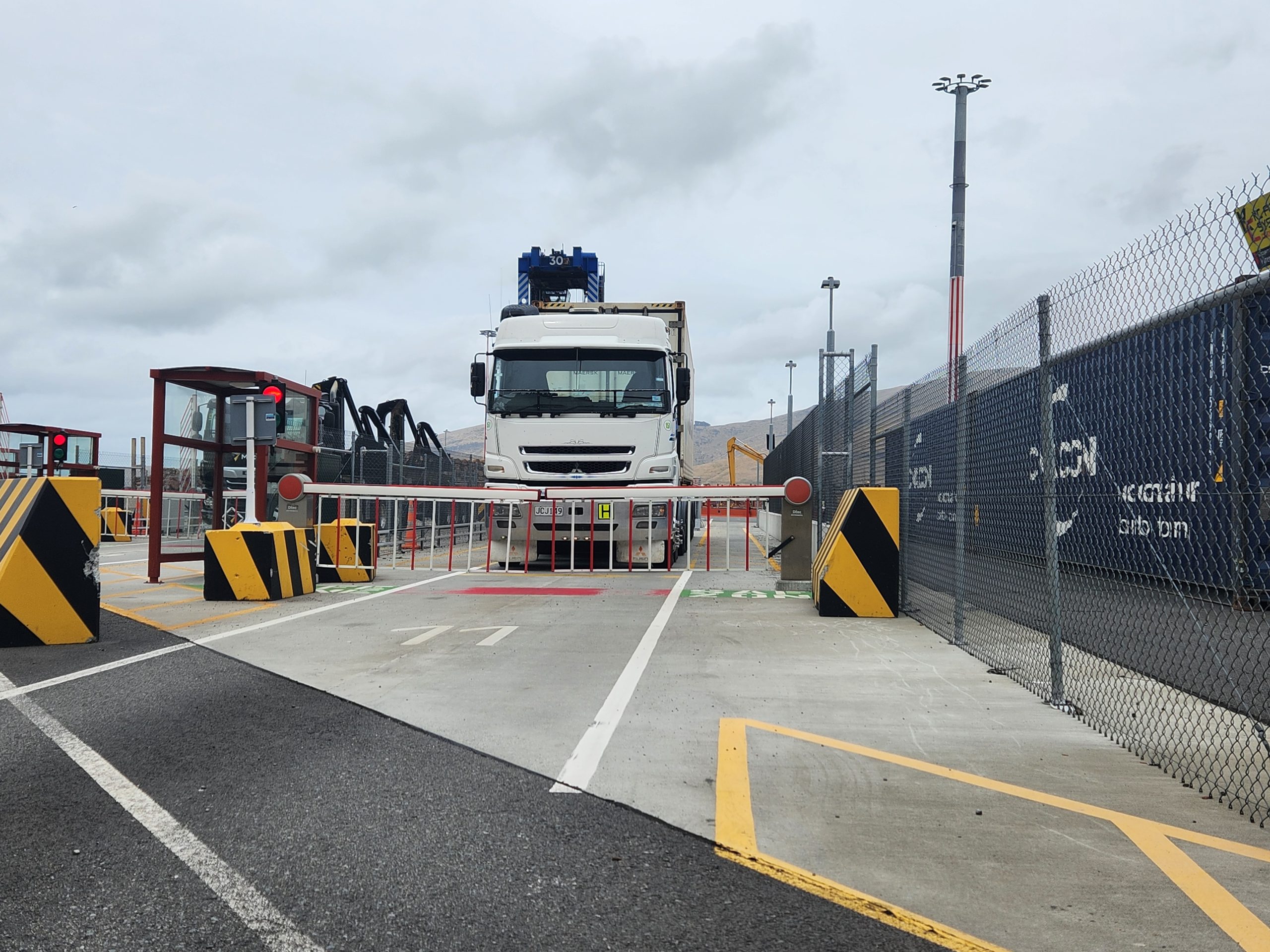

Automated barrier arms provide a reliable way to control vehicle entry, improve traffic flow, and prevent unauthorised access across commercial and industrial sites.
These systems deliver durable, weather‑resistant performance and offer essential safety and access‑control features to support efficient daily operations.
Applications:
Our automated barriers are ideal for a wide range of environments that require controlled, reliable vehicle access:
- Commercial car parks
- Hospitals & educational campuses
- Retail centres & shopping malls
- Private or restricted‑access roads
- Gated communities & residential complexes
| Key Features |
Core Design & Construction
- Steel body with aluminium arm construction
- Powder‑coated finish
- Bolt‑down installation
Arm Options
- Minimum arm width: 1 metre
- Maximum arm width: 7.6 metres
- Round or elliptical aluminium arm profiles
- Rubber guards (top and bottom)
- Rubber end plug
- Accessory mounting points
- Elliptical design for improved wind resistance and reduced swing (5.8m version)
Operation & Performance
- Motorised operation
- Opening speed: up to 2 seconds
- 24V DC motor type
- Auto‑sensing motor for enhanced safety
- Key‑operated emergency release with cover plate
- Manual handling capability during power failure
- Top‑mounted electronic panel for easy maintenance access
- Two limit switches (AC models) or encoder control (DC models)
- Two adjustable mechanical stops
Balancing System
- Single compression spring system
- Colour‑coded spring options for correct balancing
- Left‑ or right‑hand installation flexibility
Lighting & Visibility
LED lighting kit (DC models):
- Off when raised
- Flashing while moving
- Fully lit when lowered
Optional Add‑Ons
- Vehicle inductance loops
- Photo beams
- Safe edges
- Illuminated arms
- Battery backup
- Skirts
|
| Warranty Period |
2 Years |
