Overview

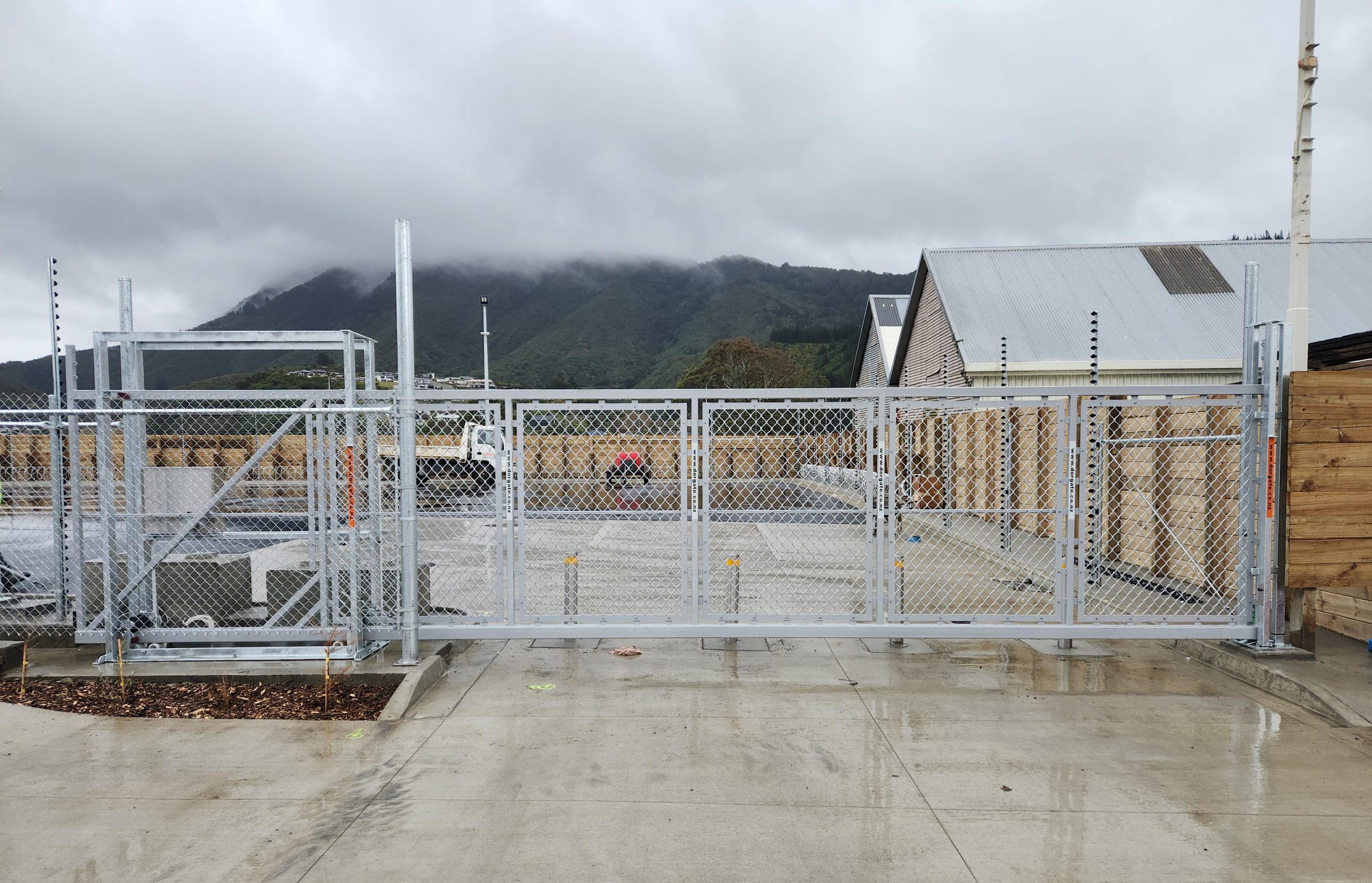

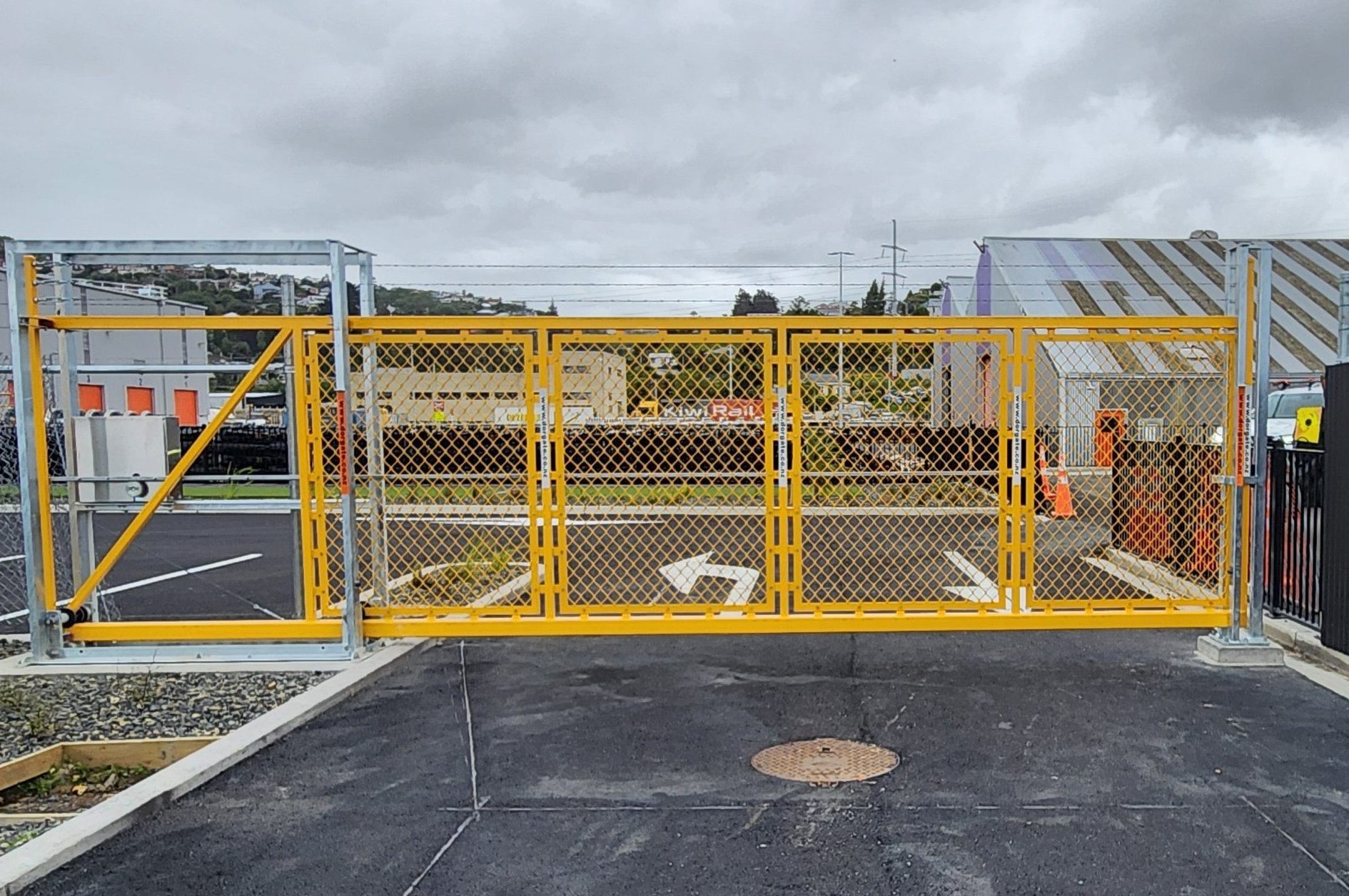

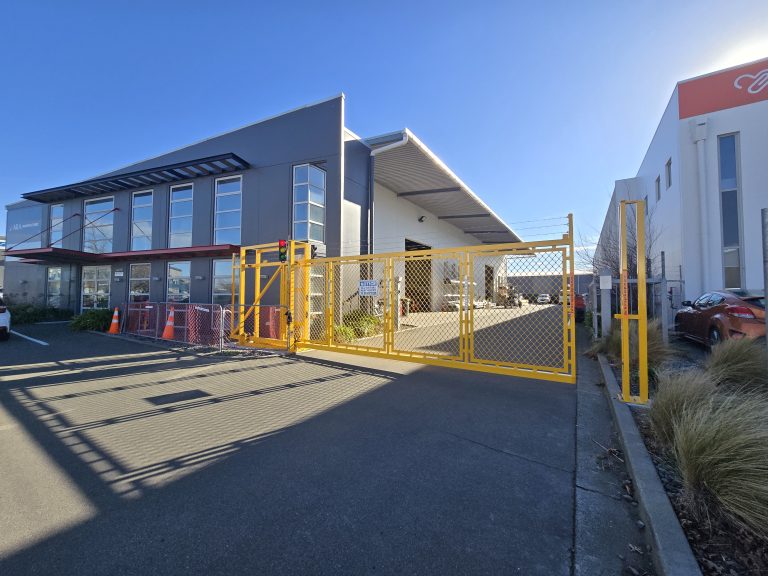

The Bullet Gate™ is a high‑speed cantilever gate system designed and engineered in New Zealand to meet the rigorous demands of modern commercial and high‑security environments. Delivering operating speeds of up to 1.2 m/s, with higher speeds available on request, this system enables rapid vehicle throughput and significantly reduces site congestion.
Because it operates as a full cantilever gate, there are no ground tracks or road obstructions, ensuring smooth, uninterrupted traffic flow and reduced maintenance.
The Bullet Gate™ integrates seamlessly with all major access‑control systems, making it suitable for new installations or upgrades to existing infrastructure. A built‑in emergency backup system ensures continued gate performance during power outages, maintaining secure access at all times.
Applications
The Bullet Gate™ is purpose‑built for locations that require fast, secure, and uninterrupted vehicle access, including:
- Ports and freight terminals
- Distribution centres and logistics hubs
- Warehousing and industrial facilities
- Secure storage sites
- High‑risk or restricted‑access areas
- Any commercial environment where controlled vehicle entry is essential
| STANDARD SPECIFICATIONS |
Full Cantilever Operation (No road surface obstruction)
High Operating Speed 1.2 metre/second (2.0 metre/second on special requests)
Motor accelerates to full speed & motor de-accelerates to stop position
24 VDC Battery Backup – up to 400 consecutive operations under mains failure
3 Sets Safety Photo-Electric Beams – 2 inside, 1 outside
2 Safety Vehicle inductance loops
2 Sets Red, Amber, Green Standard Traffic Signals – Transit NZ Approved
Powered coated and/or 2 pot epoxy to customer colour requirements.
Steel Construction with attractive Aluminium Security Mesh Panels
Illuminated Self Diagnostics (simple fault finding)
Bi-Directional PLC Program (traffic direction can be controlled by alternating traffic lights)
Pedestrian Opening Feature (gate only opens 1 metre for pedestrians)
Interface to New or Existing Access Control Systems with ate Position Indicator
Thru-Bolt Installation – Easily relocatable
|
| Gate Motor |
The Bullet Power Plant
Custom built, powder coated stainless steel motor cabinet
IP rated control cabinet with external technician override
Powerful DC bullet motor and industrial gearbox
Battery bank for faultless operation under mains failure
|
| Warranty Period |
2 Years
|
